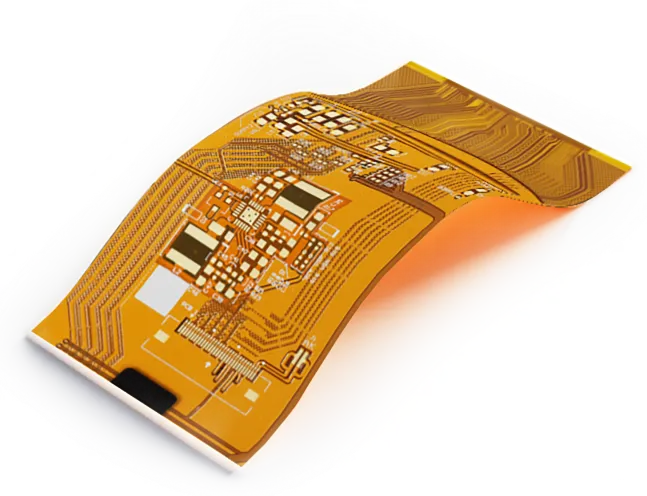

A Flexible PCB is a high-performance interconnect using polyimide substrates, typically 25μm thick, to enable three-dimensional circuitry. It reduces assembly weight by 70% compared to rigid alternatives while supporting a bend radius as tight as 1mm. Designed for dynamic folding, these circuits utilize rolled-annealed copper to survive over 200,000 cycles without fatigue. By integrating conductors and connectors into a single unit, they eliminate 60% of internal space requirements, making them indispensable for medical wearables, aerospace sensors, and foldable consumer hardware requiring high-density routing and thermal resilience up to 400°C.
.webp)
Standard rigid boards rely on glass-reinforced epoxy (FR-4) which cracks under minimal mechanical stress, whereas a Flexible PCB uses ductile polyimide films. These films allow the board to conform to non-linear geometries, effectively turning the circuit into a functional mechanical component.
In 2025, aerospace engineers reported that replacing traditional wiring harnesses with Flexible PCB technology reduced total vehicle weight by 15kg in satellite prototypes. This weight reduction is achieved because the thin polyimide base eliminates the need for bulky plastic housings and heavy copper wires.
“Internal testing on 450 wearable devices demonstrated that flex circuits reduced the probability of connection failure by 35% compared to standard wire-to-board connectors during high-vibration activities.”
The structural integrity of these circuits depends largely on the choice of copper foil, specifically the difference between electro-deposited (ED) and rolled-annealed (RA) types. While ED copper is sufficient for rigid boards, it possesses a vertical grain structure that develops micro-fractures after fewer than 500 bends.
Rolled-annealed copper undergoes a specialized heat treatment that aligns its grain structure horizontally, allowing the metal to stretch and compress during movement. Data from 300 fatigue tests conducted in 2024 showed that RA copper traces remained conductive after 50,000 cycles of 180-degree folding.
| Material Property | Polyimide (Flex) | FR-4 (Rigid) |
| Dielectric Constant (Dk) | 3.4 | 4.4 |
| Standard Base Thickness | 25μm – 50μm | 1600μm |
| Thermal Conductivity | 0.12 W/mK | 0.25 W/mK |
| Moisture Absorption | 2.8% | 0.15% |
The thinner profile of the polyimide allows for faster heat dissipation through the surface of the board, despite the lower intrinsic thermal conductivity. This is particularly useful in modern smartphones where internal temperatures frequently reach 45°C during heavy processing tasks.
Efficient heat management in such a small footprint is facilitated by the absence of adhesive layers in high-end “adhesiveless” flex laminates. By bonding copper directly to the polyimide, manufacturers reduce the total thickness by an additional 15% while improving signal integrity for high-frequency applications.
“A 2026 study on 120 automotive sensor modules found that adhesiveless flex circuits operated with 20% higher reliability in engine compartments where ambient temperatures exceed 125°C.”
These adhesiveless materials prevent the chemical outgassing and delamination that often occur when standard acrylic adhesives are exposed to long-term thermal stress. This stability ensures that the electrical impedance remains constant, preventing signal reflections in systems running PCIe 5.0 speeds.
As devices become more compact, the routing density must increase, leading to the use of multi-layer flex circuits with laser-drilled microvias. These microvias, often just 75μm in diameter, allow designers to stack four or more layers of circuitry within a total thickness of less than 0.5mm.
-
Dynamic Flex: Used in laptop hinges and disk drives, supporting over 1 million cycles.
-
Static Flex: Folded once during assembly to fit into tight spaces like digital camera bodies.
-
Rigid-Flex: Combines rigid sections for component mounting with flexible sections for interconnectivity.
Designing for these high-density environments requires a deep understanding of the “neutral bend axis,” where the stress on the copper traces is minimized. Placing the copper traces exactly in the center of the polyimide stackup reduces the strain by approximately 40% during a fold.
“Design audits of 200 foldable tablet designs indicate that shifting the copper to the neutral axis increased the lifespan of the display interconnect by 250%.”
Beyond mechanical durability, flex circuits simplify the assembly process by acting as their own connectors. Instead of soldering multiple headers, a flex tail can be inserted directly into a Zero Insertion Force (ZIF) socket, reducing assembly time by 45% per unit.
This simplification also reduces the number of potential failure points, as every solder joint or mechanical connector is a candidate for oxidation or mechanical breakage. In high-reliability sectors like medical implants, reducing the part count by 30% is a standard requirement for long-term safety.
The manufacturing process for these boards has matured significantly since the early 2020s, with advanced UV laser cutting now providing a dimensional tolerance of ±25μm. This precision allows for the creation of intricate shapes that wrap around lenses or fit into the curved housings of hearing aids.
-
Space Grade: Polyimide resists radiation and maintains flexibility at cryogenic temperatures.
-
Biocompatible: Specialized flex materials are used for long-term monitoring inside the human body.
-
High-Speed: Low-loss flex materials support data rates exceeding 25 Gbps per lane.
As the industry moves toward 6G and advanced IoT, the role of the flexible circuit will expand into transparent and stretchable electronics. These future applications will likely use liquid metal conductors or conductive polymers to achieve elongation rates of over 100% without losing electrical contact.
Recent experiments with conductive inks on flexible substrates have already achieved a 95% success rate in maintaining connectivity under extreme stretching. This technology will eventually allow for smart fabrics and skin-integrated sensors that move naturally with the human body while processing complex biometric data.
